Introduction to OndoControl

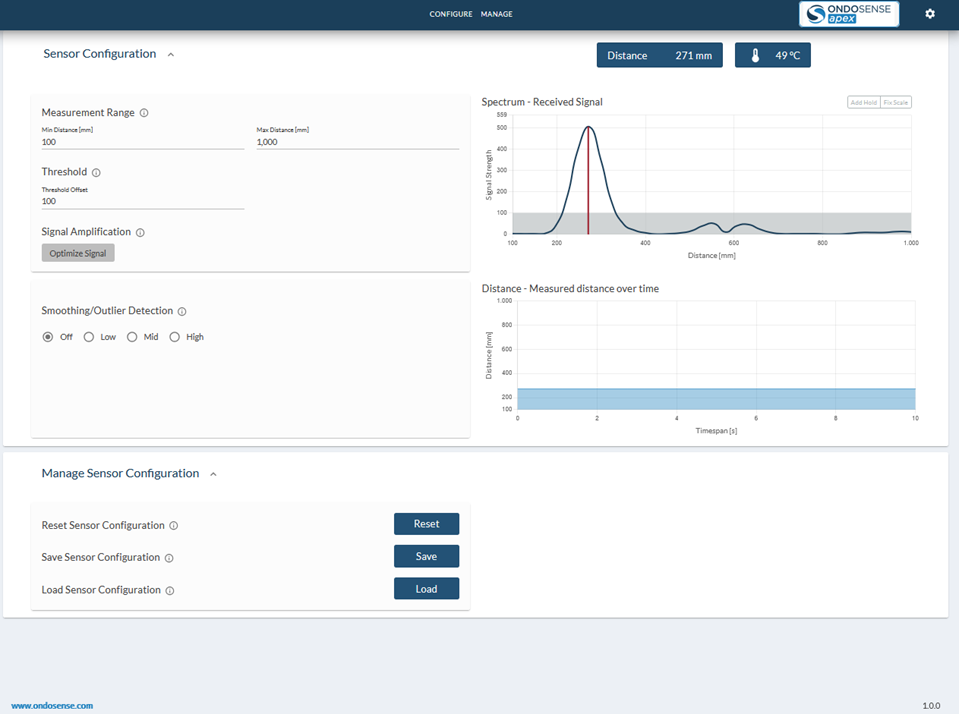

After connecting the sensor to your computer and entering its IP address in your browser’s address bar, the OndoControl user interface will appear as shown below.

If the page does not load, check your PC’s ethernet settings:

Direct connection: Set the LAN port to an IP address in the 10.10.42.xx subnetwork (No DHCP!) and use the default IP 10.10.42.2 in the address bar to access OndoControl.
Via PLC network: Assign an IP address that matches your PLC network.

Page Structure

Use the navigation tabs at the top or simply scroll to the section you’re interested in.

Sensor Configuration - View measured distances and adjust parameters.
Manage Sensor Configuration - Save, load, or reset your sensor configurations.
Properties - View sensor properties and change general settings.

Sensor Configuration
Name	View	Description	Availability
Spectrum Chart	Standard	Shows the signals received by the sensor over the measuring range. Note that the amplitude scale has arbitrary units.	Pxxx, Dxxx
Distance Chart	Standard	Displays the measured distance over time.	Dxxx
Measurement Range	Standard	All signals received from outside the specified measuring range will be ignored.	Pxxx, Dxxx
Threshold (Offset)	Standard	Sets a constant signal amplitude threshold over the complete distance.	Pxxx, Dxxx
Peak Selection	Advanced	Select the peak sorting methode and select the peak you need for your measurement task.	Pxxx, Dxxx
Adjust Signal Amplification	Standard	Find the best amplifier parameter values.	Pxxx, Dxxx
Distance Offset	Advanced	This value is added to the distance value.	Dxxx
Filter	Advanced	Filters sudden distance measurement jumps.	Dxxx
Smoothing	Advanced	Applies an exponential averaging.	Dxxx
Add Hold	Standard	Freezes or unfreezes the magnitude data.	Pxxx, Dxxx
Fix Scale	Standard	Freezes or unfreezes the automatic scaling of the y-axis.	Pxxx, Dxxx

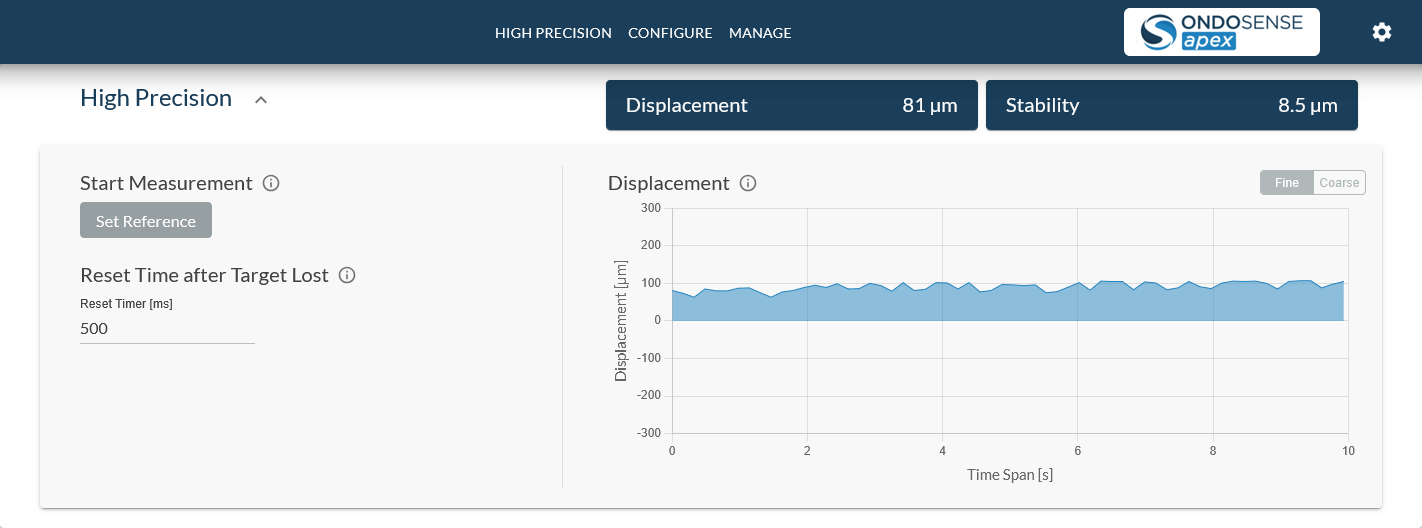

Set Reference	Standard	Defines the current distance as the new zero point for the displacement measurement.	Pxxx
Reset Time after Target Loss	Standard	Defines how long the sensor waits after a lost target before the displacement measurement automatically resets.	Pxxx
