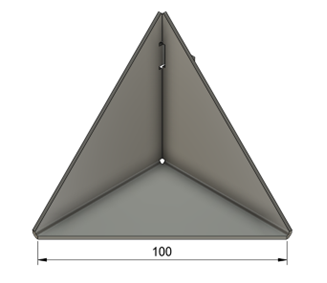

OndoSense Radarreflektor CC-100

With its high radar cross section (RCS), a corner cube reflector serves three key functions:

• Increase the signal strength received from a target.

• Increase the possible angle between sensor and target.

• Increase the precision of the measurement through an increase of the signal strength.

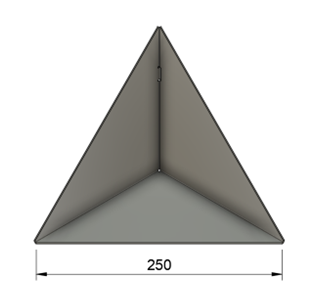

OndoSense Radarreflektor CC-250

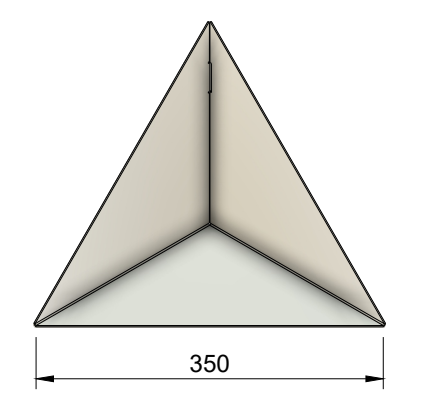

OndoSense Radarreflektor CC-350

Pipe (metal, ⌀: 25 mm)

0.1 - 0.2

Human

1

Corner reflector (metal, 100 mm)

70

Car

200

Corner reflector (metal, 250 mm)

2732

Corner reflector (metal, 350 mm

10495
