Product Variants
Distance line | Collision avoidance line | |
|---|---|---|
Measurement range1 | 0.3 m - 40 m / 0.15 m - 20 m | 0.3 m - 30 m / 0.15 m - 20 m |
Linearity | up to ±5 mm | up to ±5 mm |
Repeatability | up to ±1 mm | up to ±2 mm |
Opening angle | ±3° | ±8° |
Measurement rate | 100 Hz | 100 Hz |
1Maximum range was established using a 0.25 m corner reflector
Beam pattern

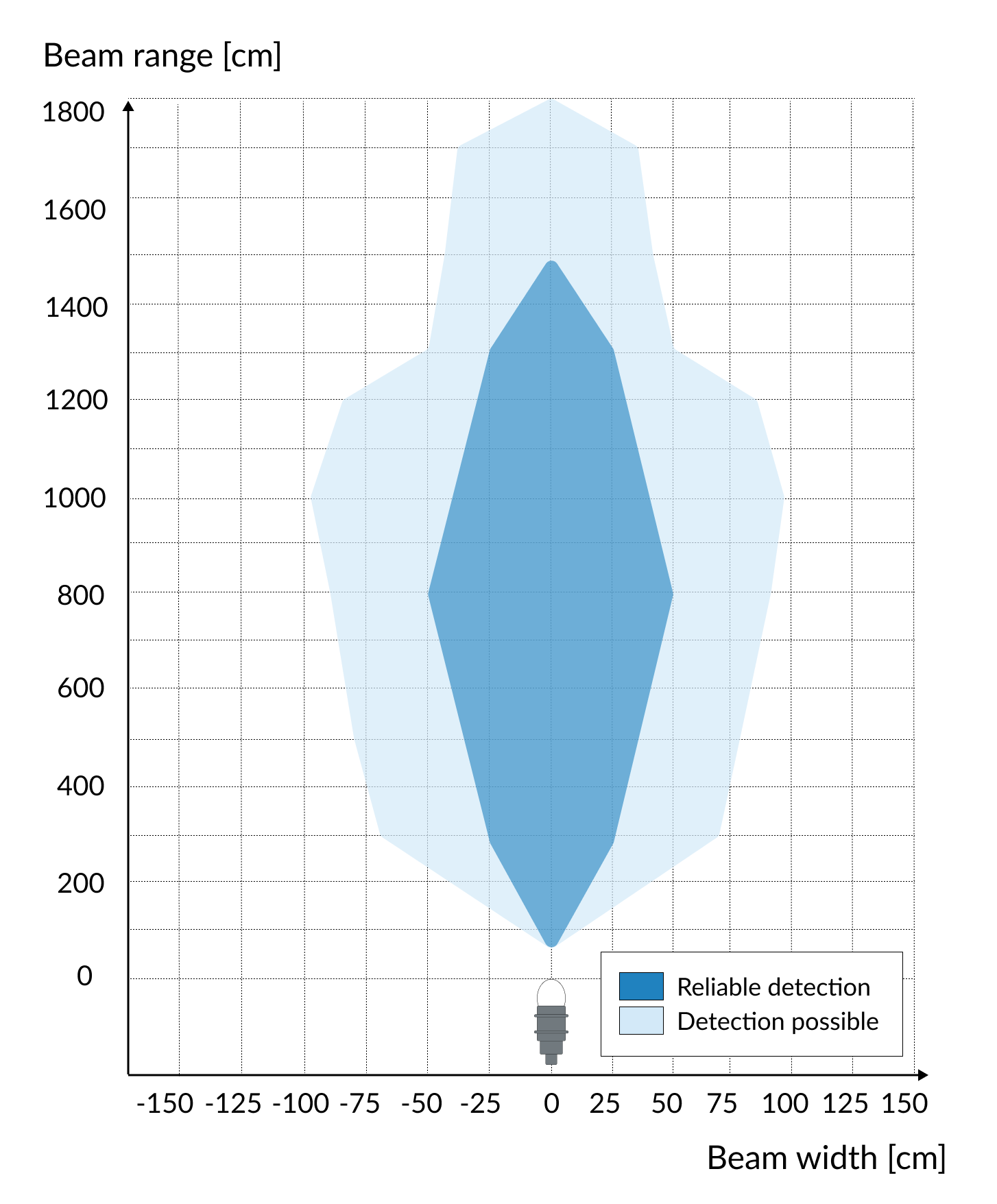

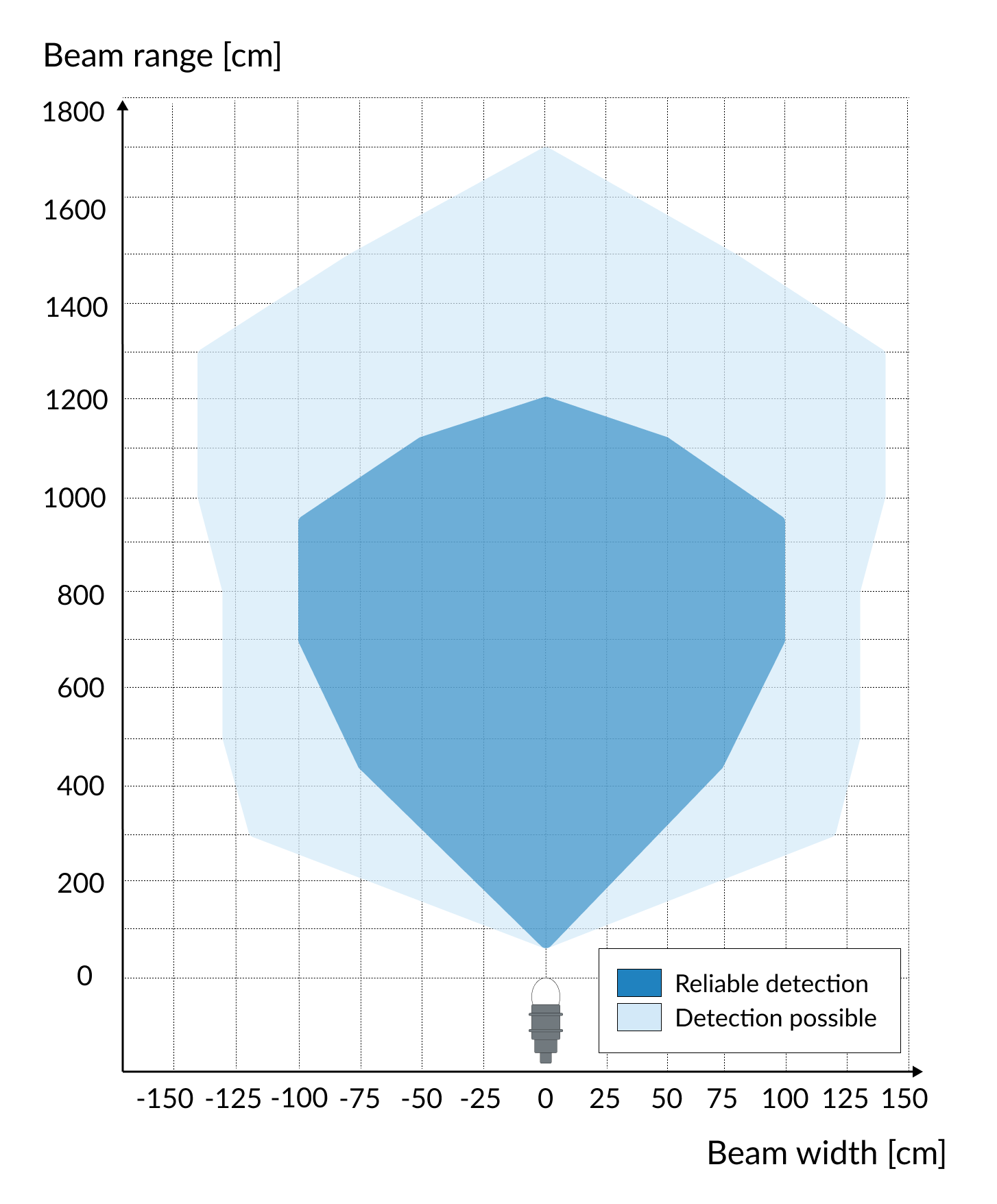

Typical beam pattern for a metal pipe (⌀: 0.025 m, RCS: 0.1 m²).
Distance line | Collision avoidance line |
|---|---|
-20241104-144506.png?inst-v=621ba1b8-525f-4195-873e-c53a5140f0ae) | -20241104-144503.png?inst-v=621ba1b8-525f-4195-873e-c53a5140f0ae) |
Note: The effective beam pattern depends on the sensitivity level, the target properties and the sensor measurement range.
