Technical Data
-20250226-122356.png?inst-v=621ba1b8-525f-4195-873e-c53a5140f0ae) | All technical data, as well as the mechanical and electrical characteristics, are specified in the data sheets of the corresponding device variant. |
Mechanical and data | |
|---|---|
Width / Diameter | 30 mm |
Length | 93-96 mm |
Housing material | Stainless steel grade 1.4404 |
Lens material | PTFE |
Connection | M12, 8-pin, a-coded connector |
Weight | 170 g |
Electrical data | |
|---|---|
Power supply | 24.0 V DC (12 - 30 V) |
Power dissipation | 1.8 W |
Environmental data | |
|---|---|
Protection class | IP67/IP69K |
Operating temperature | -40 ...+70 °C |
Storage temperature | -40 ...+85 °C |

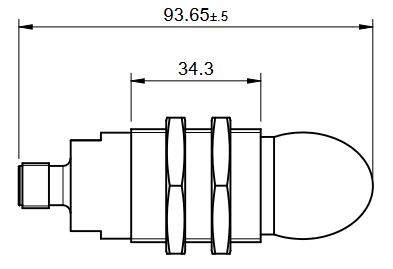

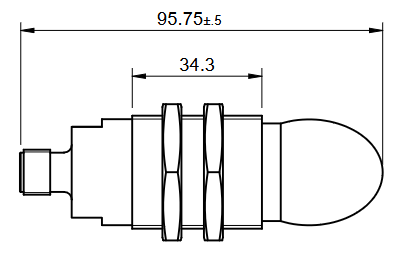

 Device overview drawing D-Line |  Device overview drawing C-Line |
