Peak Selection

Select your peak by "Amplitude" if your target is characterized by the strongest signal. Choose "Distance" if your target is expected to be the closest peak.

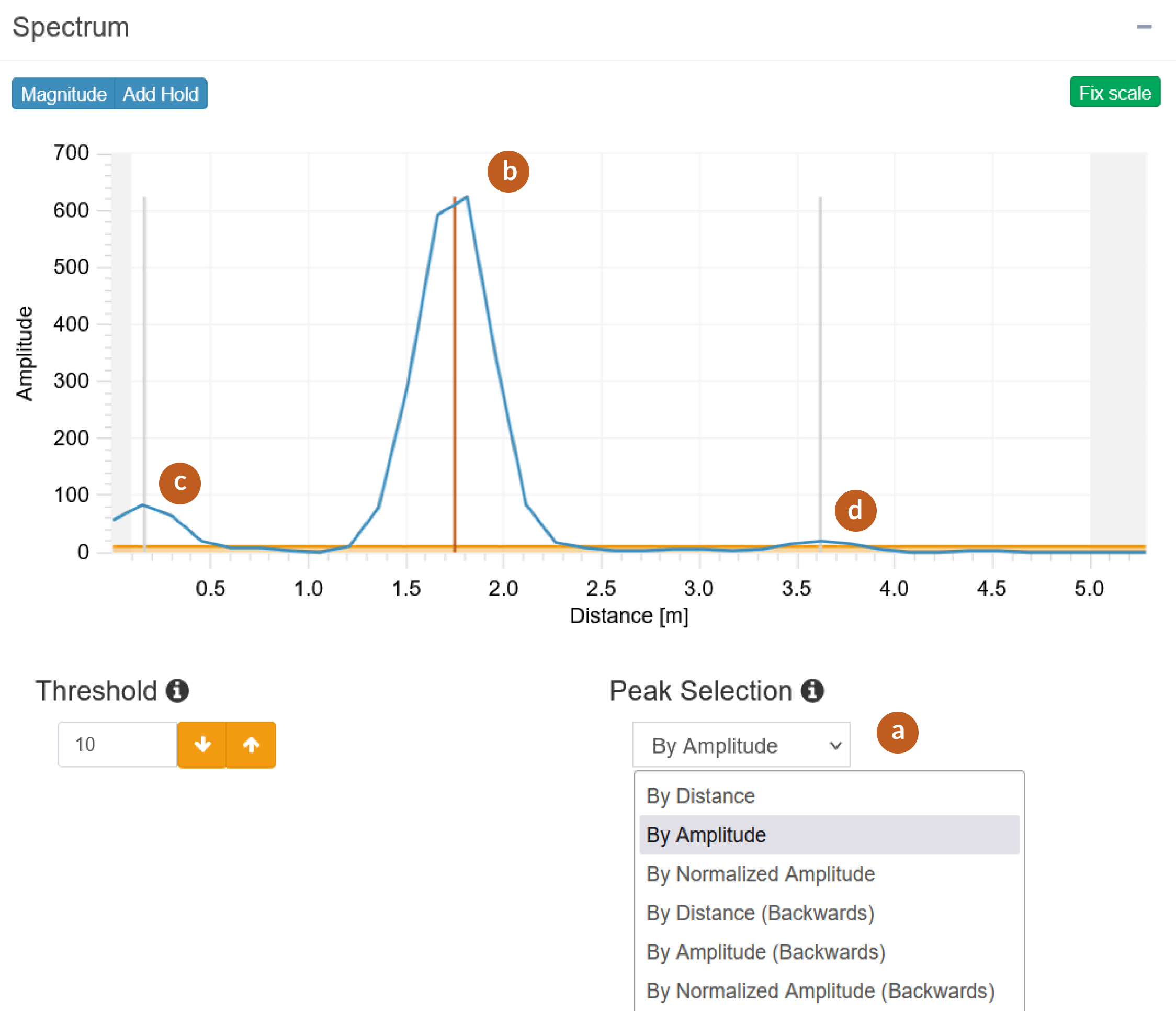

With the Peak Selection feature, you can choose which peak you want to use in the measurement. The selected peak is indicated by the red line (b) in the spectrum view shown in the figure below. You can choose between the following options (a):

• Distance: Peak with the closest distance within the measurement distance (c)

• Amplitude: Peak with the highest amplitude (b)

• Normalized amplitude: Target with the highest Radar cross section.

• Distance backwards: Last peak by distance (d)

• Amplitude backwards: Last peak by amplitude (d)

• Normalized amplitude backwards: Target with the smallest Radar cross section.
