Technical Data

All technical data, as well as the mechanical and electrical characteristics, are specified in the data sheets of the corresponding device variant.

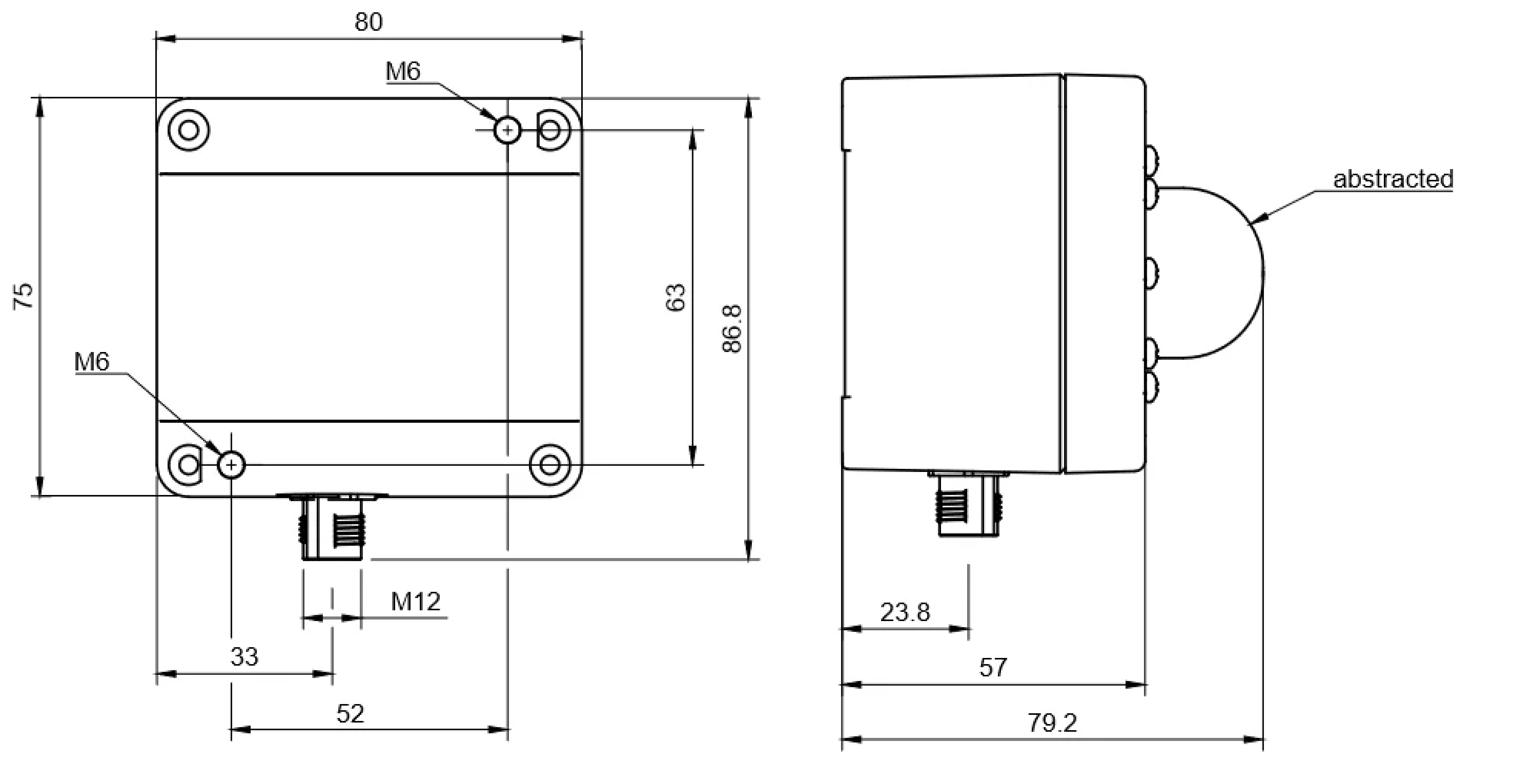

Dimensions (W x H x D)

80.0 mm x 79.2 mm x 75.0 mm

Housing material

Die-cast aluminum, painted

Lens material

PTFE

Connection

M12, 8-pin, a-coded connector

Weight

415 g
