Current Loop

Frame 37(5)-20250226-122529.png

Change the Error behaviour to 3.6 mA, 21 mA or Retain previous value

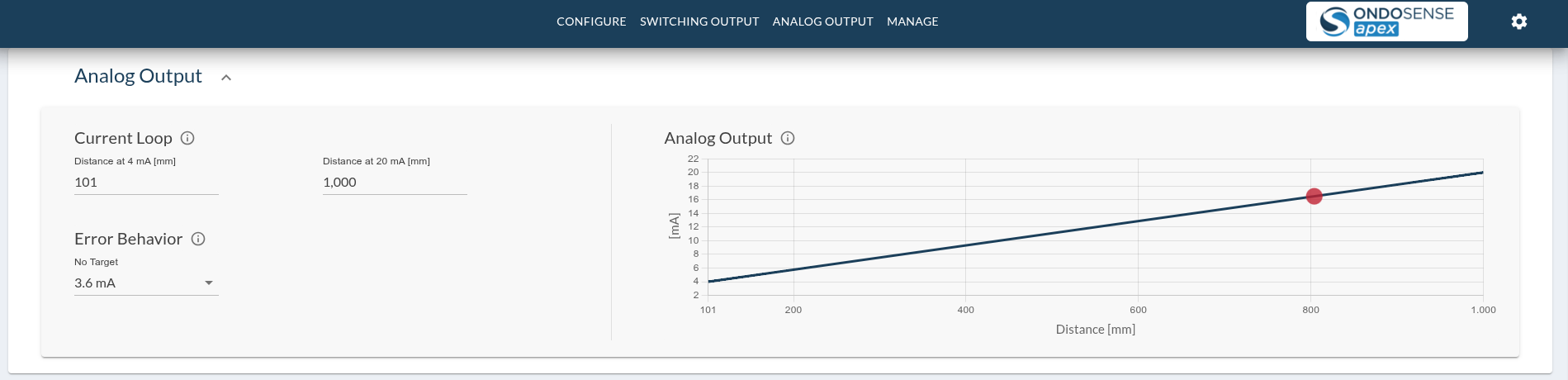

Specify the distances in millimeters at which the current should be 4 mA and 20 mA, as illustrated in the figure below. The interface will output a current that corresponds to the distance of the target, with the current value linearly varying between the two defined distances.

Error Behavior:

  • 3.6 mA: Output current is set to 3.6 mA when the target is lost.

  • Retain Previous Value: The last valid current value is retained when the target is lost.

  • 21 mA: Output current is set to 21 mA when the target is lost.


Interface for current loop
